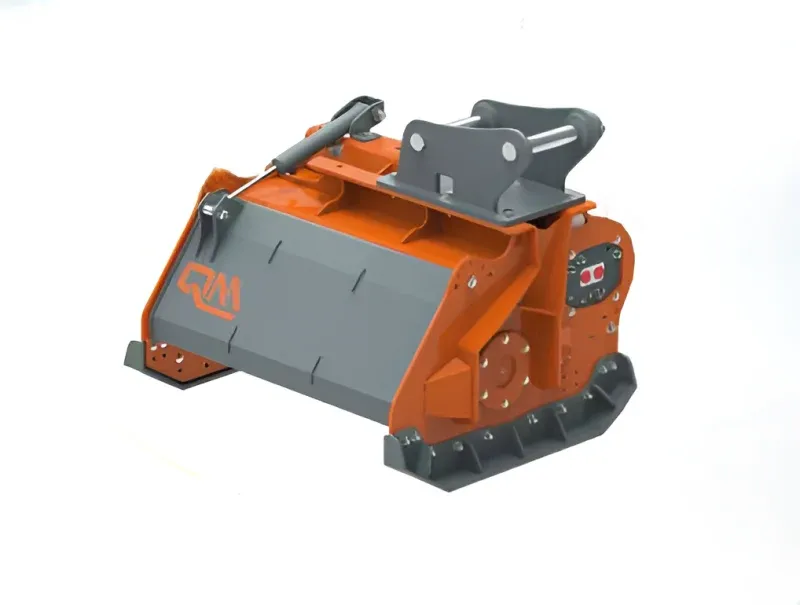

QM FM Series

Fix-tooth mulching heads suitable for machines from 4.0 to 18.0 tons.

The FM Mulcher is suitable for excavators from 4 to 18 tons. Designed to offer an ideal balance between compactness, robustness and performance, it guarantees a long durability even in intense working conditions. The FM series stands out for its versatility in a wide range of applications, from forestry work to the maintenance of green spaces, offering with its configurations of rotors and tools the ideal flexibility for differents works, from ordinary management to operations the most demanding.

Prices from £6,335.00 +VAT

Enquire →

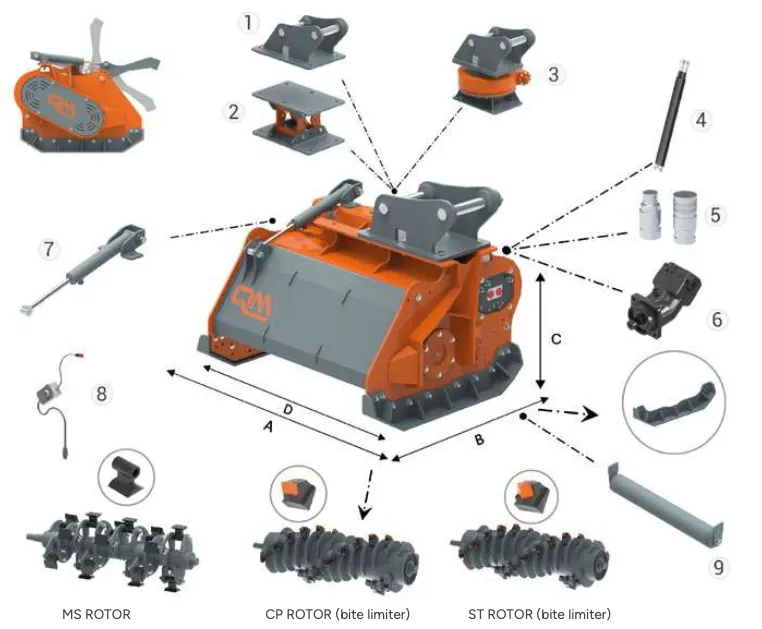

Specifications

Features

  • Chassis with double cavity bottom, resistant to violent impacts and elastic
  • Internal toothed bars help finely chop material
  • Adjustable hood opening
  • Reinforced hood with double cavity bottom
  • Carter protecting the hydraulic system and the transmission system
  • Robust and large interchangeable support slides that regulate cutting height
  • Protection with CE compliant chain barrier
  • Bolted steel plate to arrange the machine coupler (unpainted)
  • Adjustable machine coupler position
  • Flow control valve block – shock proof valve – anti-cavitation valve – max pressure
  • (does not require drainage system)
  • Engine and hydraulic components enclosed inside the body, protected from impacts and debris
  • Spherical roller bearings which, thanks to a labyrinth of special seals, are better protected from impurities
  • Toothed V-belt transmission
  • Possibility of configuring the rotor with retractable hammers (MS type), ideal for cutting grass and light
  • vegetation up to medium forestry, leaving the ground clean and debris finely chopped.
  • Possibility of configuring the rotor with fixed carbide cutting teeth (CP type) ideal for deep cleaning in mixed environments with shrubs, brambles and bushes
  • Possibility of configuring the rotor with fixed carbide teeth (ST type) ideal for extreme uses such as crushing large trunks down to the ground
  • High quality painting for greater resistance to impacts and wear
