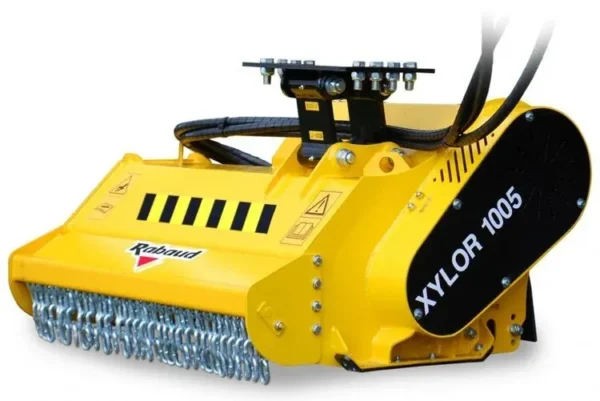

Rabaud XYLOR 603PE 803PE 1005PE 1207PE 1209PE 1413PE

Designed to clear the undergrowth, the XYLOR is for excavators from 2 to 13 ton (dependent on the model). The HBC system (Hydraulic Block Control) allows the hydraulic oil flow control, pressure limitation and progressive braking of the rotor which is electronically balanced to real rotation speed.
The XYLOR (except the 603 and 803) has a helicoidal rotor with hammers, plus one line of u-shape counter knives for optimal clearing. The rear depth control is height adjustable in 3 positions.
There is a protective housing for the hydraulic block and belts, rear protection with adjustable anti-spatter guard and front protection with chains. The hydraulic hoses also have protective covers.

Prices from £4,130.00 +VAT

Features

For excavator from 2,5 to 16 Tons.
Helicoidal rotor with mobile hammers + one line of U-shape counter knives for optimal shredding (except XYLOR 603 and 803 models).
HBC system (Hydraulic Block Control) allowing the hydraulic flow regulation, limits the pressure and allows rotor progressive braking.
Rotor electronically balanced to real rotation speed for more durability.
Self-leveling intermediary coupling with fixed position (up to the XYLOG 1207 PE).
Side shifting by belt (except for XYLOR 603 and 803, direct shaft).
Case for the protection of hydraulic motor.
Cast-iron gear hydraulic motor with drain line.
Front protection with chains to avoid projections. Rear protection with rubber flap.
Support pads with interchangeable and anti-wear material.
Rear roller-feel adjustable in height.
Anti-jet sheath for hydraulic hoses.
