Case Study: Bale Grab Modification
Real people with real experience, ready to take on projects of any size.
The brief
Introduction

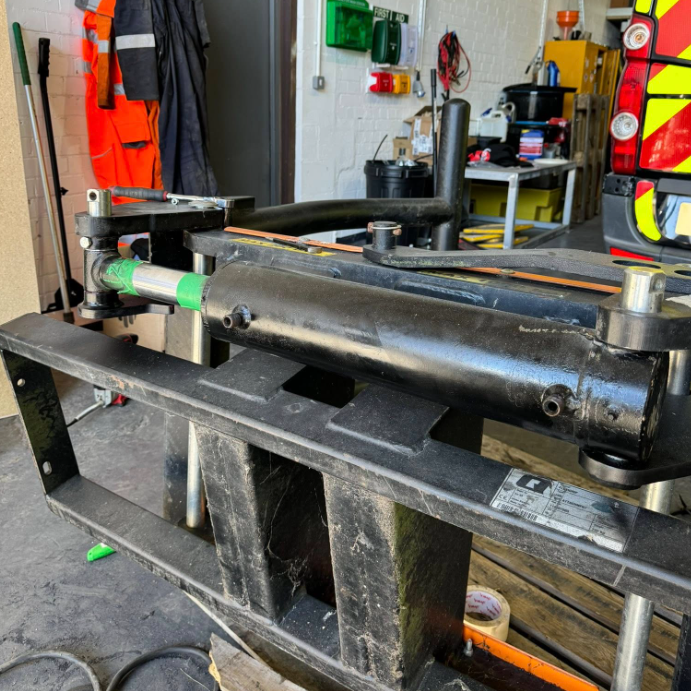

We regularly carry out modifications and repairs to help keep our customers’ machinery in top working order. Recently, a customer needed their bale grab adapted to accommodate a larger hydraulic ram.
Our team removed the old bushes, fabricated new bushes to size, and fitted them securely. We also machined and modified the pins to ensure everything aligned correctly. The result was a stronger, more reliable attachment tailored to the customer’s needs – delivered quickly and with minimal downtime.
Looking for similar work? Explore our machining services or find out more about plant machinery repairs.
The Process
1. Initial Setup

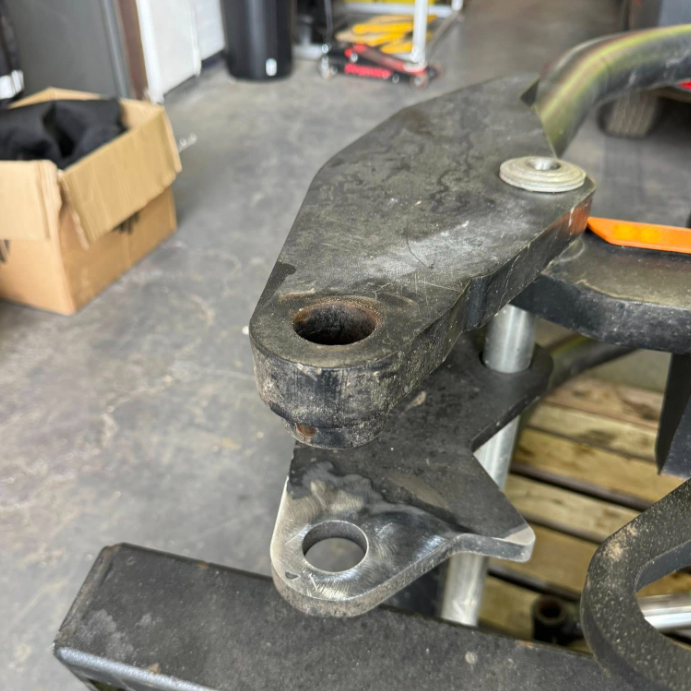

The bale grab was brought into our workshop for inspection. We identified worn bushes and oversized pin holes as the main issues.
2. Removal & Replacement
The old bushes were removed, and new precision bushes were machined in-house. This ensured a tight fit and long-lasting durability.

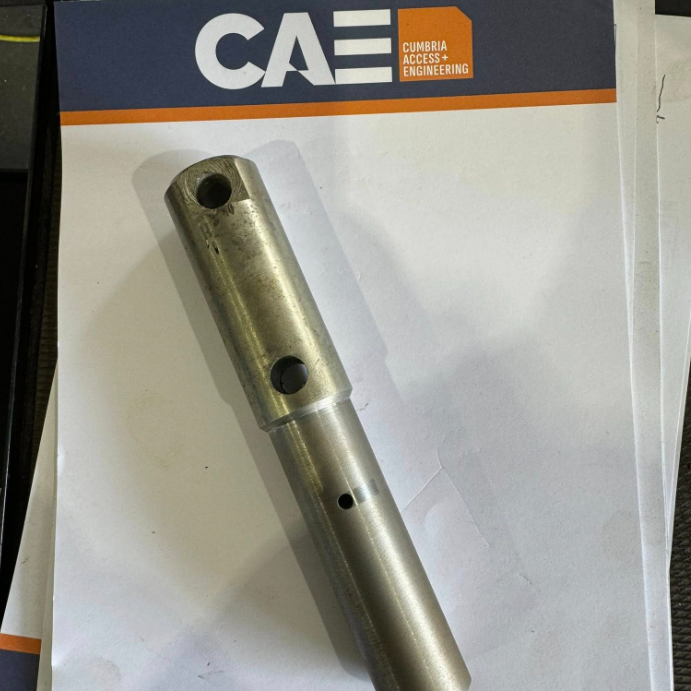

3. Pin Modification
The attachment pins were modified and machined to suit the upgraded ram, guaranteeing smooth operation and alignment.

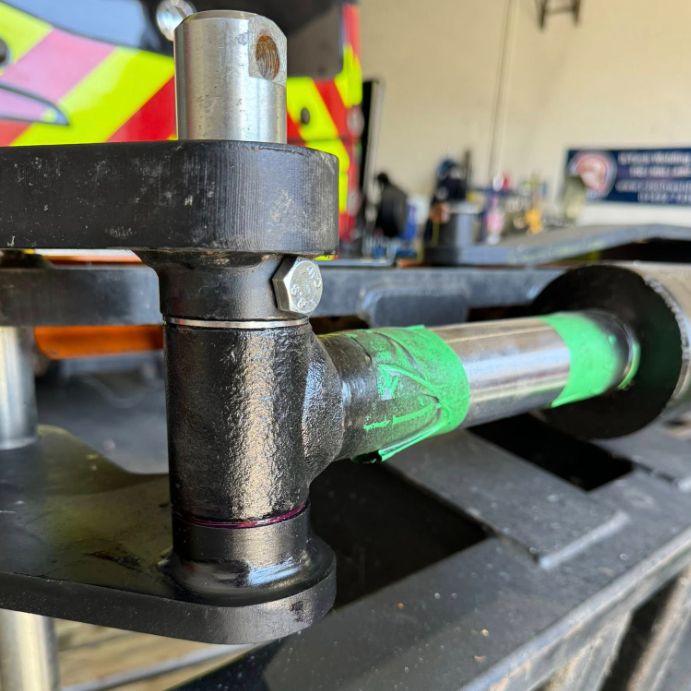

4. Final Assembly
With the bushes fitted and pins in place, the bale grab was reassembled, tested, and returned to the customer ready for use.
Frequently Asked Questions
Yes, we can fabricate new bushes, pins, brackets, and other components in our machining workshop.
For certain equipment we can attend on-site, though most machining work is carried out in our workshop.
Turnaround depends on the scale of work, but smaller machining jobs can often be completed within a few days.
